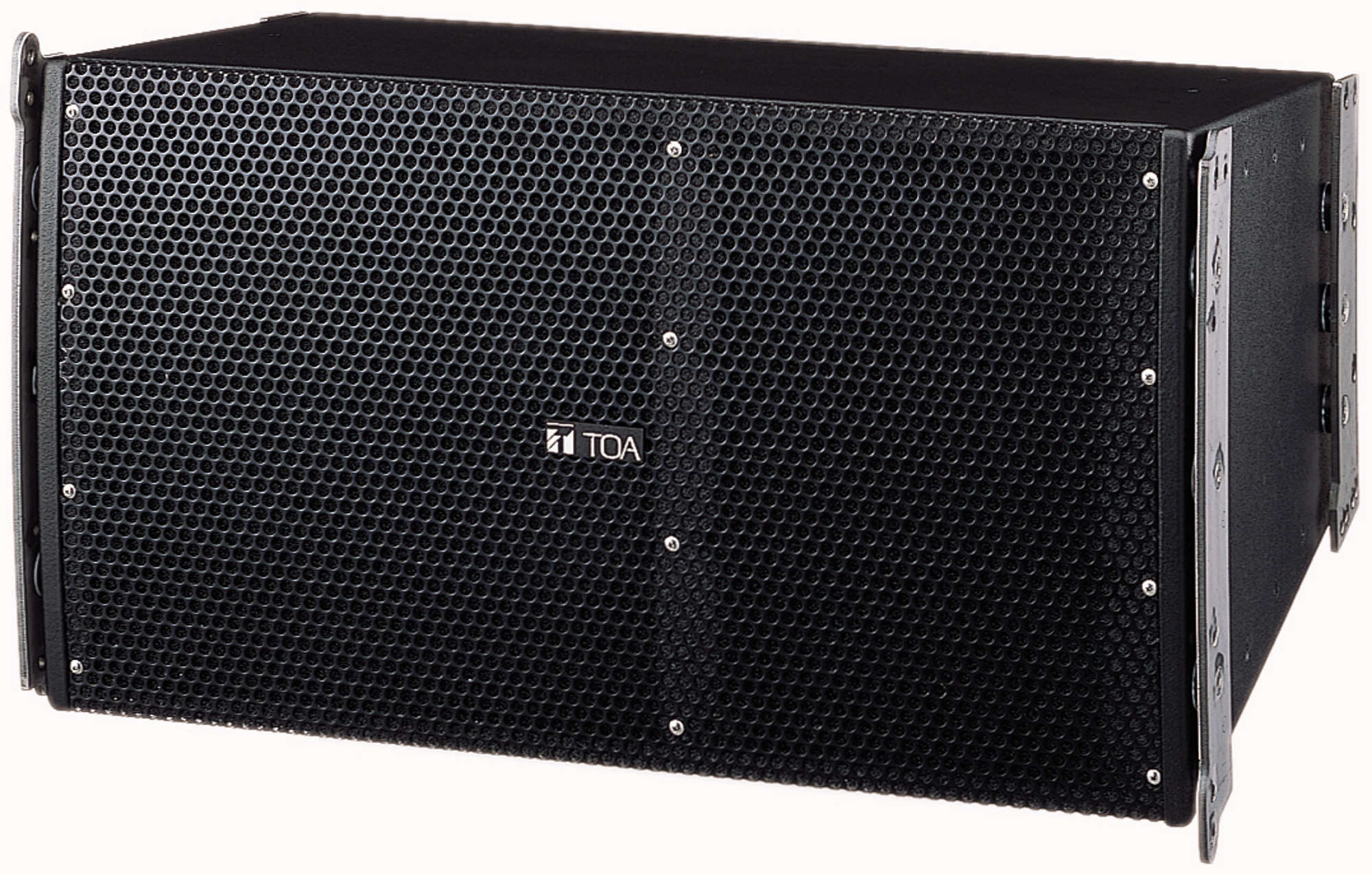

SR-A12SWP

High Performance Speaker

Discontinued

SR-A12SWP

Featuring the line arrayed wave front control technology that creates sound fields with uniform sound pressure and high sound clarity, the SR-A12SWP is a two-way line array speaker ideal for short distance sound transmission. It satisfies the water-protection requirements set down in the IPX4 Standard. The SR-A12SWP employs the multi-amplifier drive system. Recommended digital speaker processor is the DP-SP3.

Compact and powerful 2-way modular speaker units that can be used in multiple configurations
High-performance driver units
Wavefront control that functions to obtain the best possible performance from the high frequency drivers
Adjustable sound coverage through two speaker configurations
Simple maintenance – complete driver replacement is possible from the speaker‘s rear

Specifications Downloads

Enclosure

Bass-reflex type

Power Handling

Continuous program Low frequency: 450 W, High frequency: 180 W

Rated Impedance

Low frequency: 8 Ω, High frequency: 16 Ω

Sensitivity

Low frequency: 98 dB (1 W, 1 m), High frequency: 109 dB (1 W, 1 m)

Frequency Response

50 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)

Crossover Frequency

1 kHz (when recommended parameters are applied by the optional DP-SP3)

Directivity Angle

Horizontal: 90°, Vertical: 15°

Speaker Component

Low frequency: 30 cm cone-type
High frequency: Wave front control horn 90° (horizontal) x 15° (vertical)
+ compression driver x 2

Connected Cable

Direct cable withdrawal from internal speaker: Φ8.6 mm, conductor cross section: 1.25 m㎡, 4-core cable, 3 m

Water Protection

IPX4

Operating Temperature

-10 ℃ to +50 ℃

Finish

Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel, black, paint

Dimensions

740 (W) x 433 (H) x 467 (D) mm (excluding connected cable)

Weight

48 kg (including accessories)

Included Accessories

Joint plate …2, Joint plate mounting bolt (M10) …16

Optional Accessories

Rigging frame: SR-RF12WP

Please download Datasheet to access full specifications.
