N-SP80MS2
SIP Multimedia Station
N-SP80MS2

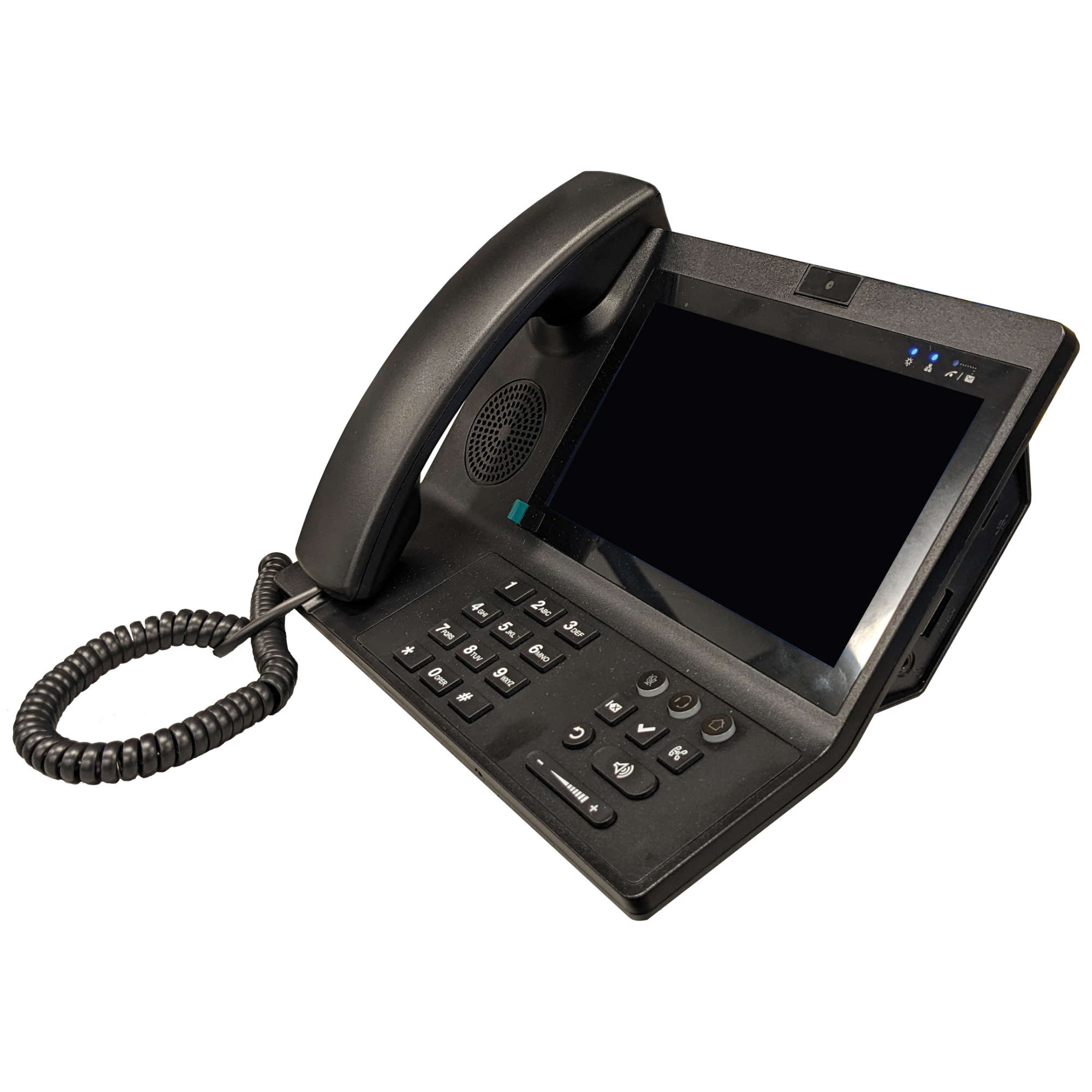

The N-SP80MS2-AM is our newest Multimedia station. Developed using Google's Android platform, the MS2 is designed for use in combination with the SIP (Session Initiation Protocol) Intercom system. The station con be used not only in SIP server mode but also in peer-to-peer mode: the former enables the station to work by connecting to the SIP server and the latter enables it to work without using the SIP server.
- Equipped with a 7'' capacitive touch panel screen
- Built-in camera (with privacy shutter)
- Handset, hands-free, headset conversation functionality
- PoE or 12 V DC power supply
Power Supply
PoE (IEEE802.3af) or 12 V DC (use of the optional AC adapter)
Power Consumption
12 W or less
Speech Method
Hands-free, Handset, or Headset conversation
Audio Bandwidth
G. 722 codec: up to 7 kHz
Hands-free
Speaker: 5 cm (1.97") Cone-type, Maximum output 2 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Microphone: Omni-directional electret condenser microphone
Handset
Receive path: 4 cm (1.57") Cone-type, Maximum output 250 mW, 32 Ω
Send path: Electret condenser microphone
Send path: Electret condenser microphone
Display
7 inch capacitive touch screen TFT LCD, 1024 X 600 pixels, 16: 9 wide screen
Camera
Image device: 1/5" CMOS
Number of effective pixels: 2 M pixels
Maximum resolution: 1080 p
other features: Free-Rotation
Number of effective pixels: 2 M pixels
Maximum resolution: 1080 p
other features: Free-Rotation
Video
Image size: QCIF, CIF, 4CIF, VGA, 720P
Bit rote: 64 kbps - 2 Mbps
Bit rote: 64 kbps - 2 Mbps
External Interface
USB, HDMI, Bluetooth 4.2
Network
Network I/F: 10BASE-T /100BASE-TX/1000BASE-TX (Auto-Negotiation)
Network protocol: UDP/TCP/IP, HTTP /HTTPS, TLS, RTP /RTCP, ARP, NAT, NTP, IGMP, SIP, etc.
Pocket transmission system: Unicast, Multicast
Paging: Multicast transmission x1
Connector: RJ45 2 ports (one supports PoE (IEEE802 3af)
Quantifying bit number: Maximum 16 bits
Voice encoding method: G.711 µ-law/A-law, G.722, G.729, OPUS
Video compression method: H.263, H.264, H.265, VP8
Network protocol: UDP/TCP/IP, HTTP /HTTPS, TLS, RTP /RTCP, ARP, NAT, NTP, IGMP, SIP, etc.
Pocket transmission system: Unicast, Multicast
Paging: Multicast transmission x1
Connector: RJ45 2 ports (one supports PoE (IEEE802 3af)
Quantifying bit number: Maximum 16 bits
Voice encoding method: G.711 µ-law/A-law, G.722, G.729, OPUS
Video compression method: H.263, H.264, H.265, VP8
Network Protocol
Wireless standard: IEEE 802.11 b/g/n
Working frequency bond: 2.4GHz
Working frequency bond: 2.4GHz
Installation Method
Desktop, Wall (requires purchase of wall mount bracket N-SP80WB2-AM)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
10% to 90% RH (no condensation)
Finish
Body, Handset ABS resin, black
Dimensions
250 (W) x 211.1 (H) x 195.4 (D) mm (9.84" x 8.31" x 7.69")
(excludinq a curl cord section ) × Numerical values ore for reference only
(excludinq a curl cord section ) × Numerical values ore for reference only
Weight
115 kg (2.54 lb)
Included Accessories
Handset x1, Coil cord x1, LAN cable x1, Foot stand x1
Optional Accessories
AC adapter: AD-1215P, AD-5000-2
Wall bracket: N-SP80WB2
Wall bracket: N-SP80WB2
Please download Datasheet to access full specifications.
Please sign in to access further technical materials such as software, firmware or EASE files.
