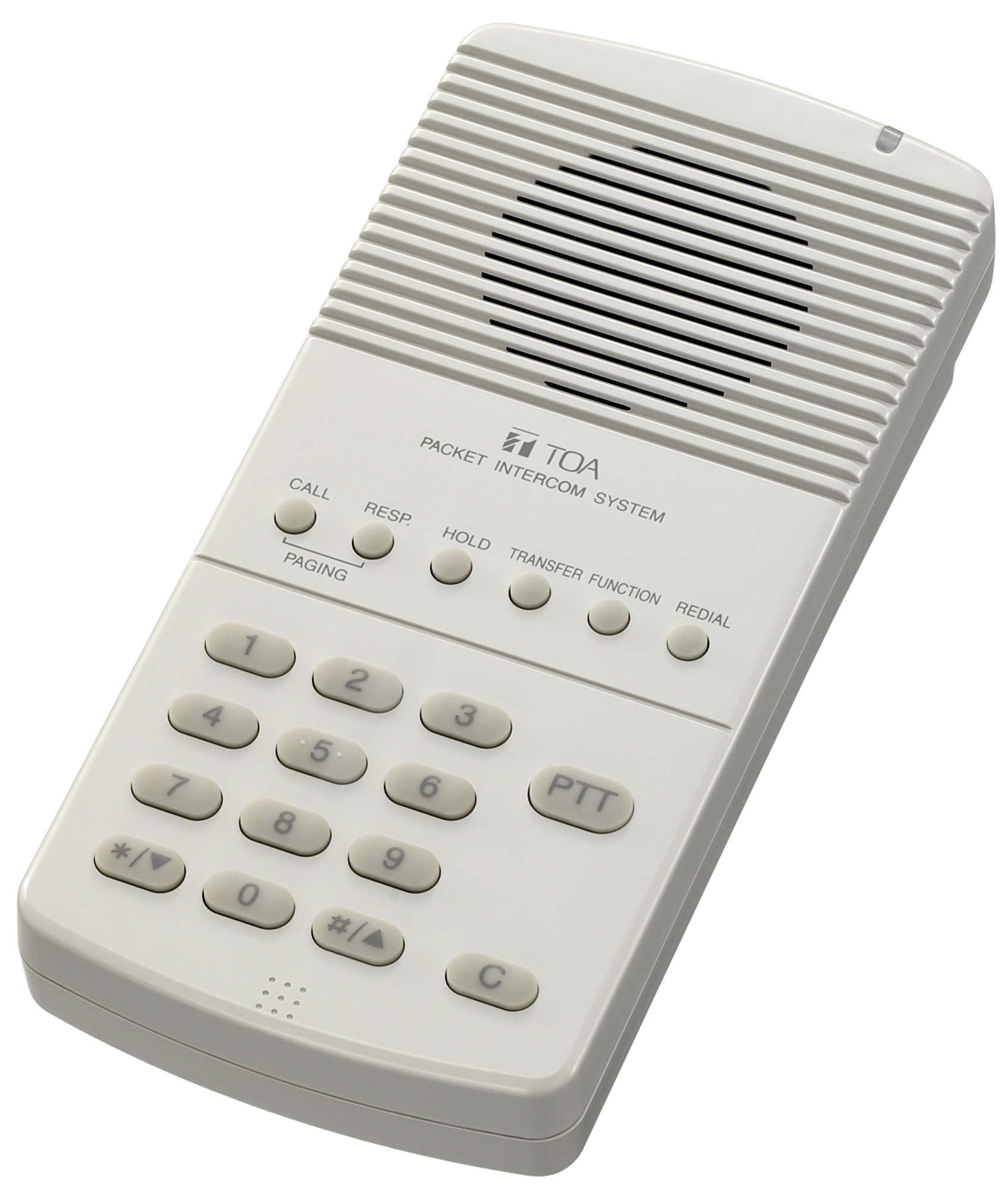

N-8011MS
Standard Hands-free Master Station
N-8011MS
This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free conversation of high sound quality. With its space-saving design, this Master Station features the same functions as the Standard Master Station. This station can be mounted to the wall using an optional YC-290 wall mounting bracket.
- Space saving design
- Hands-free conversation
- High sound quality
- Status LED
* 0 dB = 1 V
Power Source
48 V DC (supplied from the IP intercom exchange (option)
Power Consumption
1.8 W (at rated), 2.4 W (max.)
Wiring Method
1 set of twisted pair cable
Transmission System
2 wire 160 kbps echo canceller transmission system
Signal Level
Under 0 dB*
Speech Method
Hands-free conversation
Audio Frequency Range
300 Hz - 7 kHz
Transmission Range
Max. 1500 m (Φ0.65 mm, Loop resistance 170 Ω)
Hands-free
Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Microphone: Omni-directional electret condenser microphone
Indication
Status lamp
Line Connecting Terminal
RJ11 modular jack
Installation Method
Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-290.)
(When mounting to the wall, use the optional YC-290.)
Operating Temperature
0 ℃ to +40 ℃
Operating Humidity
Under 90 % RH (no condensation)
Finish
Body: ABS resin, gray
Dimensions
92 (W) x 195 (H) x 56.1 (D) mm
Weight
400 g
Included Accessories
Connection cord (3 m) …1
Optional Accessories
Wall mounting bracket: YC-290
Please download Datasheet to access full specifications.
Optional Accessory
Default home page station to the handsfree with echo cancellation.
10 Buttons, 4 programmable speed dial buttons, 2 function keys, talk priority button, delete button, call button (for announcement), answer key (for announcement), hold-down button, transfer button (manual call forwarding), redial.
Function call button for activation control output, call forwarding, Office transfer, time-based call forwarding, busy forwarding, background music.
