Mirabel Aquatic and Sports Center, Mirabel, QC

Sports Complexes

The Mirabel Aquatic and Sports Center serves as a brand new state-of-the-art facility for the suburb of Mirabel and surrounding areas around Montreal. Offering a variety of activities such as; a 25 m competitive swimming pool with 10 lanes, a recreational swimming pool, a paddling pool, a slide, and other water games. This space has been equipped with a equally future-proof TOA sound and paging system, ensuring high-quality sound for the surrounding community.


For this new build, organizers behind the aquatics & sports center wanted to implement a system that would be able to project clear and high-quality sound/music across the large portion of the building devoted to the swimming pools. Additionally, they also aimed to install a paging system that would run throughout the remainder of the building, delivering intelligible announcements and communications to staff and attendees alike.


Given the nature of the building’s purpose and use, one of the most prominent challenges for the equipment is prolonged water and chlorine exposure. As such, any equipment being installed in these spaces would need to be able to handle a lifetime of exposure to these elements without expedited degradation. Another challenge of the space itself would be size, reverberation was a serious concern as a poorly designed layout would negatively affect sound quality and the experience of all visitors.


In order to tackle both the spatial requirements, as well as handle elements in an environment that can be disastrous for electronics, the waterproof rated version of the HX-5 compact line array speakers served as the perfect option for such a space. They can be seen mounted above all swimming areas, providing optimal coverage whilst mitigating undesirable reverberation. For paging and internal communications, our F and PC series of ceiling mounted speakers serve as the go-to options for many clients, providing clear and understandable communications across the facility. All of which being routed through 9000 and DA series amplifiers, and culminating into a M-864 digital stereo mixer for ease of access and configuration.


The installation went as planned, with all products being installed without complications. Attendees are welcome to experience the quality themselves through any of the activities held within the facility.

About TOA Canada

TOA Corporation was founded in Kobe, Japan over 80 years ago. TOA operates in over 100 countries worldwide, with manufacturing facilities found in nearly every major market area. These facilities have a reputation for precision design and fabrication, resulting in a proven track record of TOA product reliability.

TOA Canada Corporation was formed in 1990 as a complete sound solutions provider, specializing in commercial audio, including, public address, voice communications, voice evacuation and emergency paging requirements. TOA Canada offers complete solutions for all corporate and commercial audio communications and intercom security requirements.


Variable Dispersion Array HX-5
Variable Dispersion Array HX-5
Full area coverage and wider bandwidth sound.
The HX-5 is an innovative modular speaker design that incorporates the best characteristics of the traditional, cumbersome woofer enclosure combined with a CD horn-loaded high frequency driver and the full-range compact speaker enclosure without the drawbacks associated with each type. the HX-5 features remarkably easy to control coverage characteristics including problematic low frequencies and can be installed in a multitude of ways while maintaining a modern, unobtrusive appearance. a system is configured by four preassembled modules with four IF drivers and twelve HF dome tweeters. This configuration allows the variable directivity control and low-frequency dispersion control comparable to use a large constant directivity horn speaker. a choice of 4 directivity angles (15, 30, 45 and 60 degrees) can be employed as needed.

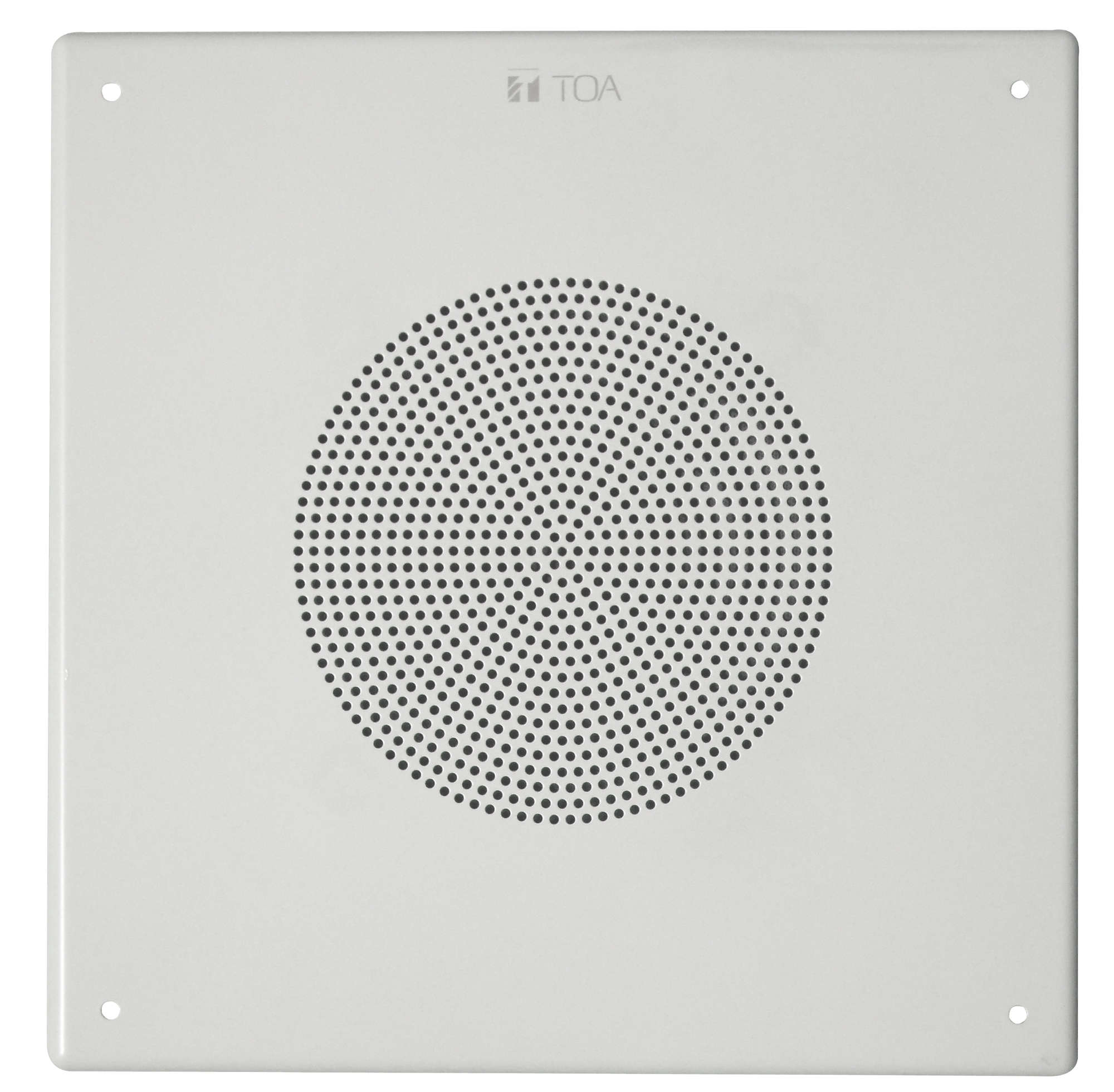

Ceiling Speakers (Wide dispersion type)
Ceiling Speakers (Wide dispersion type)
Expanded listening coverage area through extra-wide dispersion characteristics.
F Series Wide Dispersion Speakers are ideal for music and paging applications such as audio/visual, business music or retail sound systems. The lineup consists of six models with features and price points to suit premium-to-economy applications. Key benefits includes smooth off-axis coverage, versatile range of models and ease of installation.
9000M2 Series Amplifiers
9000M2 Series Amplifiers
9000M2 Series with Unparalleled Versatility—ideal for multi-zone paging, music distribution and room-combining applications.
The TOA 9000M2 Series Digital Matrix Mixer/Amplifiers redefines the conventional mixer/amplifier category by combining a modular matrix mixer, digital signal processor (DSP) and amplifiers in a compact, two rack space package. The versatile new series is ideal for multi-zone paging, music distribution and room-combining applications. The 9000M2 Series models include dual and single channel amplifiers with high or low impedance outputs plus a matrix mixer-only version.
DA Series Multi-Channel Power Amplifiers
DA Series Multi-Channel Power Amplifiers
Top-of-the-line operation and performance efficiency.
The DA-Series multi-channel power amplifiers offer a wide choice of power ratings, advanced Class D amplification circuitry and a highly efficient AC mains to output power ratio for the complete technological superiority it takes to support longterm installation applications.  These energy-efficient, space-saving amplifiers are designed to combine high levels of performance and efficiency, and are well-suited to ensure sound reinforcement reliability in a wide range of venues.
