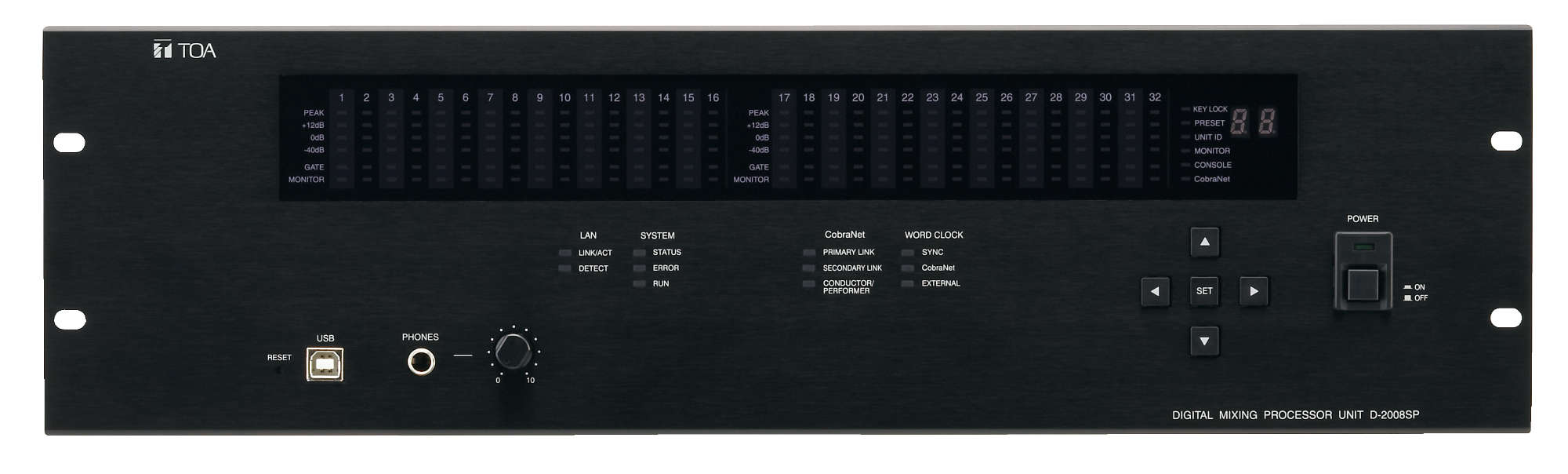

D-2008SP

Digital Mixing Processor Unit

Discontinued

D-2008SP

32 preset memories for user convenience
Up to 32 different routing and parameter configurations can be stored for frequent changes in staging, seating and speaker arrangements
Intuitive GUI
Mixing console option offers easy user operation
User-friendly VCA control

Spécification Produits associés Téléchargements

Source d’alimentation

120 V AC,60 Hz

Power Consumption

78 W

Frequency Response

20 Hz – 20 kHz, ±1 dB (±4 dB* input)

Sampling Frequency

48 kHz

Input/Output

Input: Max. 32 channels, modular construction (modules optional)
Output: Max. 32 channels, modular construction (modules optional)
Monitor bus: 1 stereo input, 1 stereo output
Connector: RJ45 connector Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable (data lines: 2 pairs)
Maximum cable distance: 100 m or 109.36 yd (between D-2008SP and D-2012C)
Headphones: 1 stereo

Digital Signal Processing

Feedback Suppressor (FBS)

12 filters (auto/dynamic), Max. 4 bus channels

Auto-Mixing Function

Ducker (auto muting), NOM attenuation

Auto Mixing Group

4 groups

Equalizer/Filter

Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267 - 69.249
Filtering:
High-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter 20 Hz - 20 kHz, Q: 0.267 - 69.249
Low shelving filter 6 Hz - 20 kHz, 6 dB
Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps)
Crossover filter: 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct

Compressor/Auto-Leveler

Threshold: –20 to +20 dB (1 dB steps)
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1,3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack time: 0.2 ms – 5 s
Release time: 10 ms – 5 s
Gain: –∞ to +10 dB
Knee Type: Hard knee, Soft knee 1, Soft knee 2(Auto-leveler mode)
Target level: –20 to +20 dB (1 dB steps)
Maximum gain: 0 to +20 dB (1 dB steps)
Attack time: 10 ms – 10 s
Release time: 100 ms – 10 s

Output Delay

Delay time: 0 - 1360 ms (0.021 ms steps)

Bus Delay

Delay time: 0 – 677 ms (0.021 ms steps)

Matrix

Input: Max. 34 (32 + 2) channels x 24 bus
Output: Max. 44 (24 + 4 + 16) bus x 32 channels

CobraNet Matrix

Input: Max. 16 channels x 24 bus
Output: Max. 28 (24 + 4) bus x 16 channels

Crosspoint gain

–∞ to 0 dB (1 dB steps)

Preset Memory

Auxiliary Function

Key lock function

LAN

Network I/F: 1 10BASE-T/100BASE-TX circuit (selectable by automatic recognition), RJ45 connector for maintenance use, connection via a switching hub
Network Protocol: TCP/IP
Connection Cable: Category 5 or higher shielded twisted pair cable for LAN (CAT5-STP or better)
Maximum Cable Distance: 100 m or 109.36 yd (between this unit and a switching hub or PC)

Control

RS-232C: D-sub connector (9 pins), for external control
Module: Remote control module slot x 2

Operating Temperature

5 °C to 40 °C (41 °F to 104 °F)

Finish

Panel: Aluminum, hair-line finish, black
Case: Pre-coated steel plate

Dimensions

482 (W) x 132.6 (H) x 343.4 (D) mm (18.98" x 5.22" x 13.52")

Weight

6.3 kg (13.89 lb)

Included Accessories

Power cord (2m (6.5 ft) x 1, Module mounting screw (spare) x 4, Blank panel (preinstalled on the module slot) x 8, CD (SEt-up software) x 1

Optional Accessories

Mic/Line input module: D-2000AD1, D-921E, D-921F, D-922E, D-922F
Stereo select input module: D-936R
Digital input module: D-923AE
Line output module: D-971E, D-971M, D-971R, D-2000DA1
Digital output module: D-972AE
CobraNet interface module: D-2000CB
Remote control module: D-981, D-983, VCA control module: D-984VC

Veuillez télécharger la fiche technique pour accéder aux spécifications complètes.
