MW-42BT-AM

  • Audio Interface with USB and Bluetooth®
Audio Interface with USB and Bluetooth®

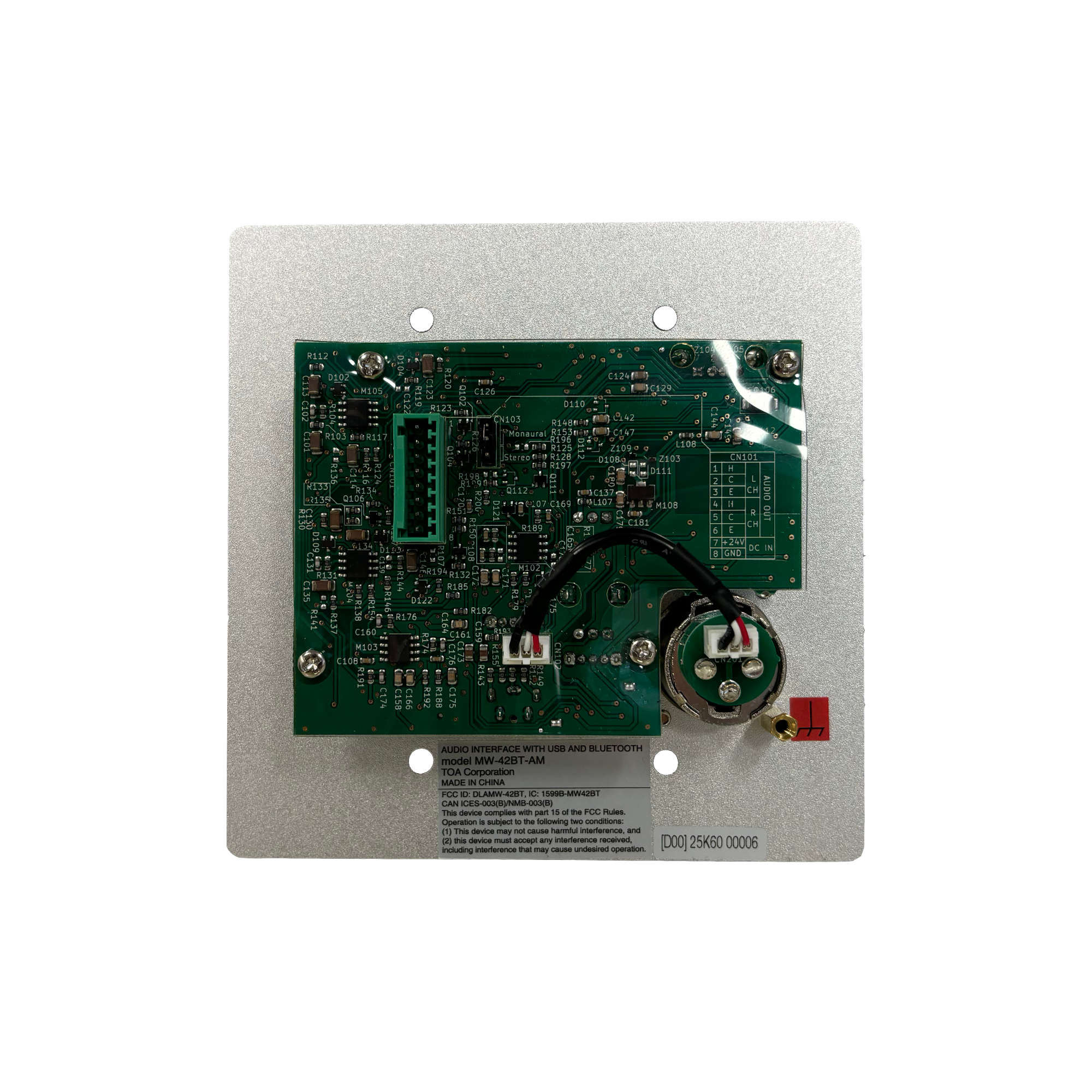

MW-42BT Rear.jpg

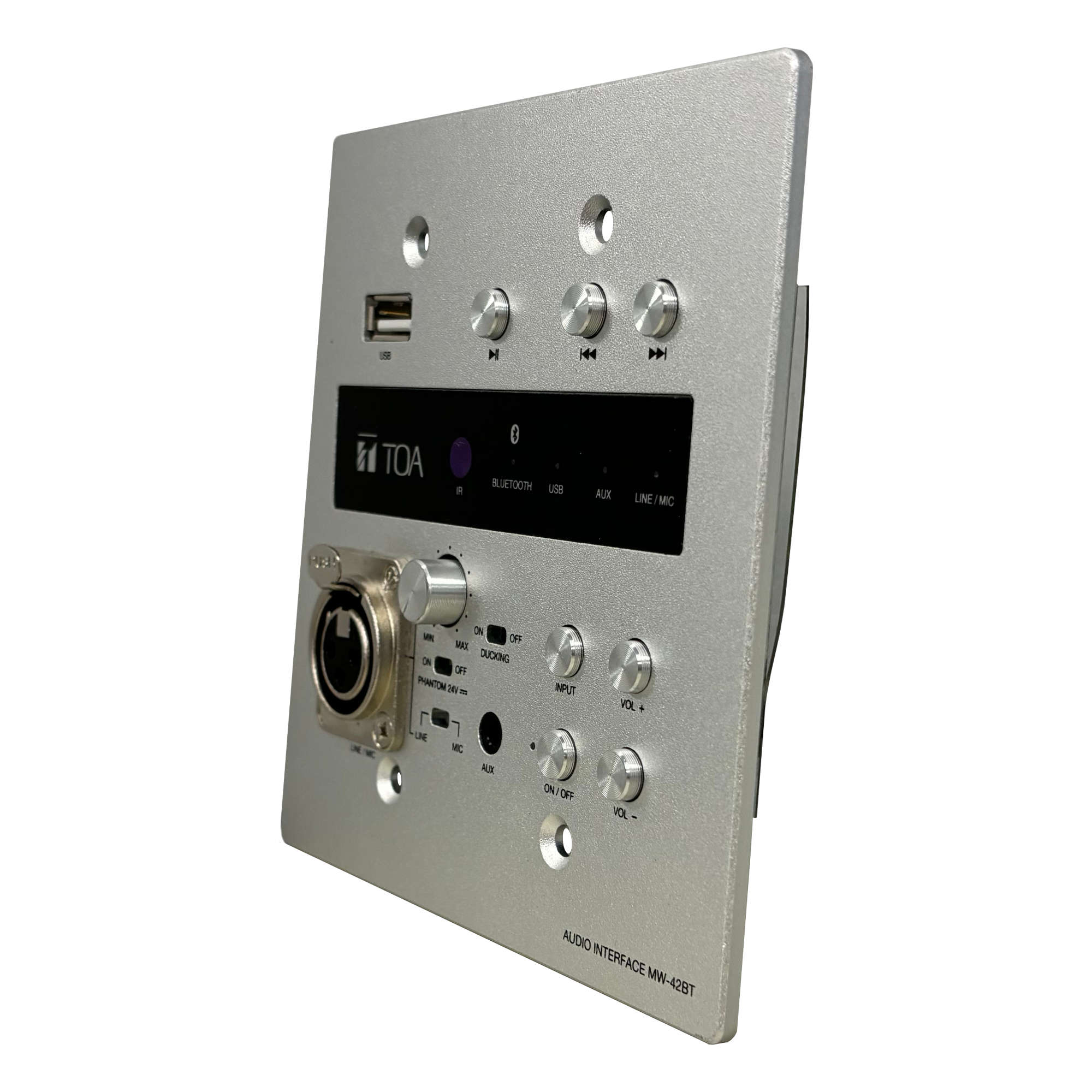

MW-42BT Angle.jpg

Audio Interface with USB and Bluetooth®

MW-42BT-AM

Equipped with Bluetooth®, USB, auxiliary input, and a line/microphone input. The in-wall design and timeless appearance make the MW-42BT easily integrate with any environment and save space.

QTÉ
▼
Power Source
100-240V AC 50/60Hz
Current Consumption
3W
Attenuation
LINE/MIC input: -10 dBV, 10 kΩ/-60 dBV, 600Ω, electronic balanced, female XLR Connector
AUX input: -10 dBV, 10 kΩ, unbalanced, stereo 3.5 mm(1/8") mini jack
USB inputL Audio formats: MP3, WAV — Format: FAT16, FAT32, Max. 32GB
Bluetooth® input: Ver 5.4, Max 10m
Control
Stereo/Monaural output, 0 dBV, 10 kΩ, electronic balanced, removable terminal block
Indicator
Power (Blue) x1, LINE/MIC (Blue) x1, AUX (Blue) x1, USB (Blue) x1, Bluetooth® (Blue) x1
Operating Temperature
0°C to 40°C (32°F to 104°F)
Operating Humidity
90% RH or less (no condensation)
Finish
Panel: Aluminum, Sandblasting, Silver Decorative Sheet: Acrylic, Black
Dimensions
120 (W) x 120 (H) x 40.2 (D) mm (4.72” x 4.72” x 1.58”)
Weight
0.2 kg (0.44lbs)
Included Accessories
AC Power adapter x1, Remote control x1, Box mounting screw (6-32UNC) x4, Grounding screw x1, Flat gasket x2, Fixed gasket x1, Removable terminal plug (8 pins) x1

Veuillez télécharger la fiche technique pour accéder aux spécifications complètes.

Please sign in to access further technical materials such as software, firmware or EASE files.

Get Your Quote.

  • MW-42BT_Front.jpg
  • MW-42BT Rear.jpg
  • MW-42BT Angle.jpg

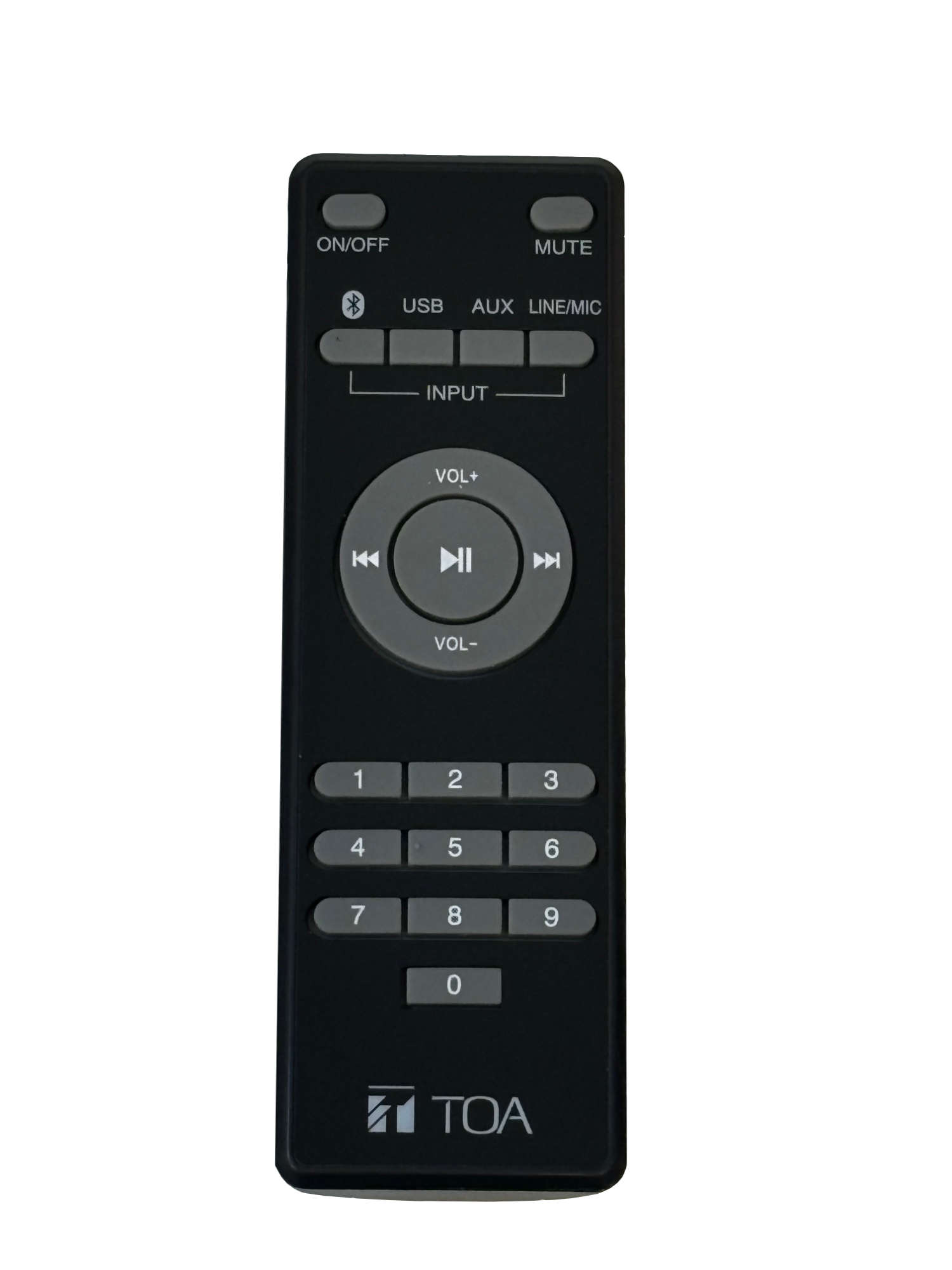

  • MW-42BT_Remote.jpg
