F-2762LU2-AM
Low Profile Ceiling Speaker
F-2762LU2-AM

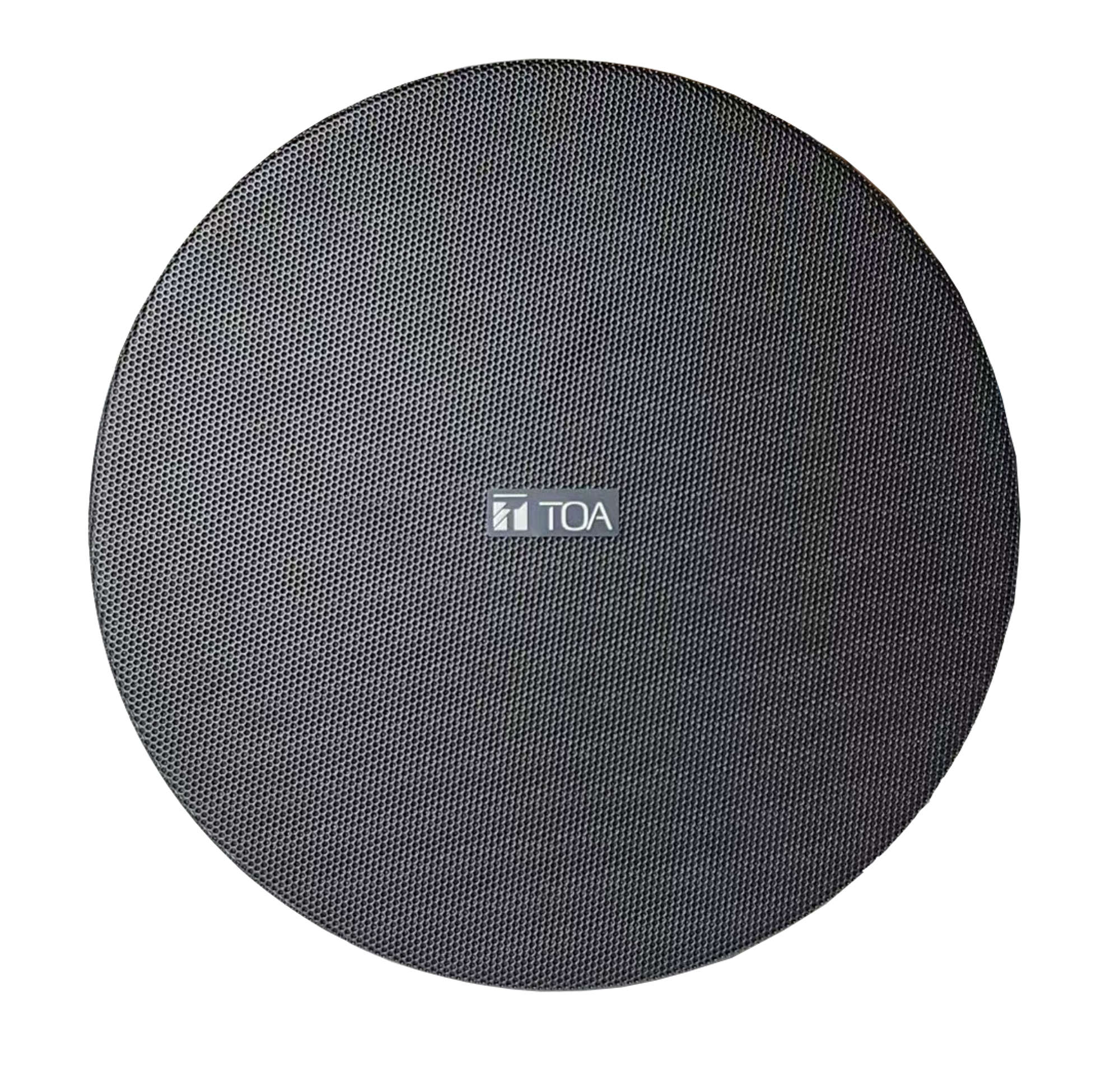

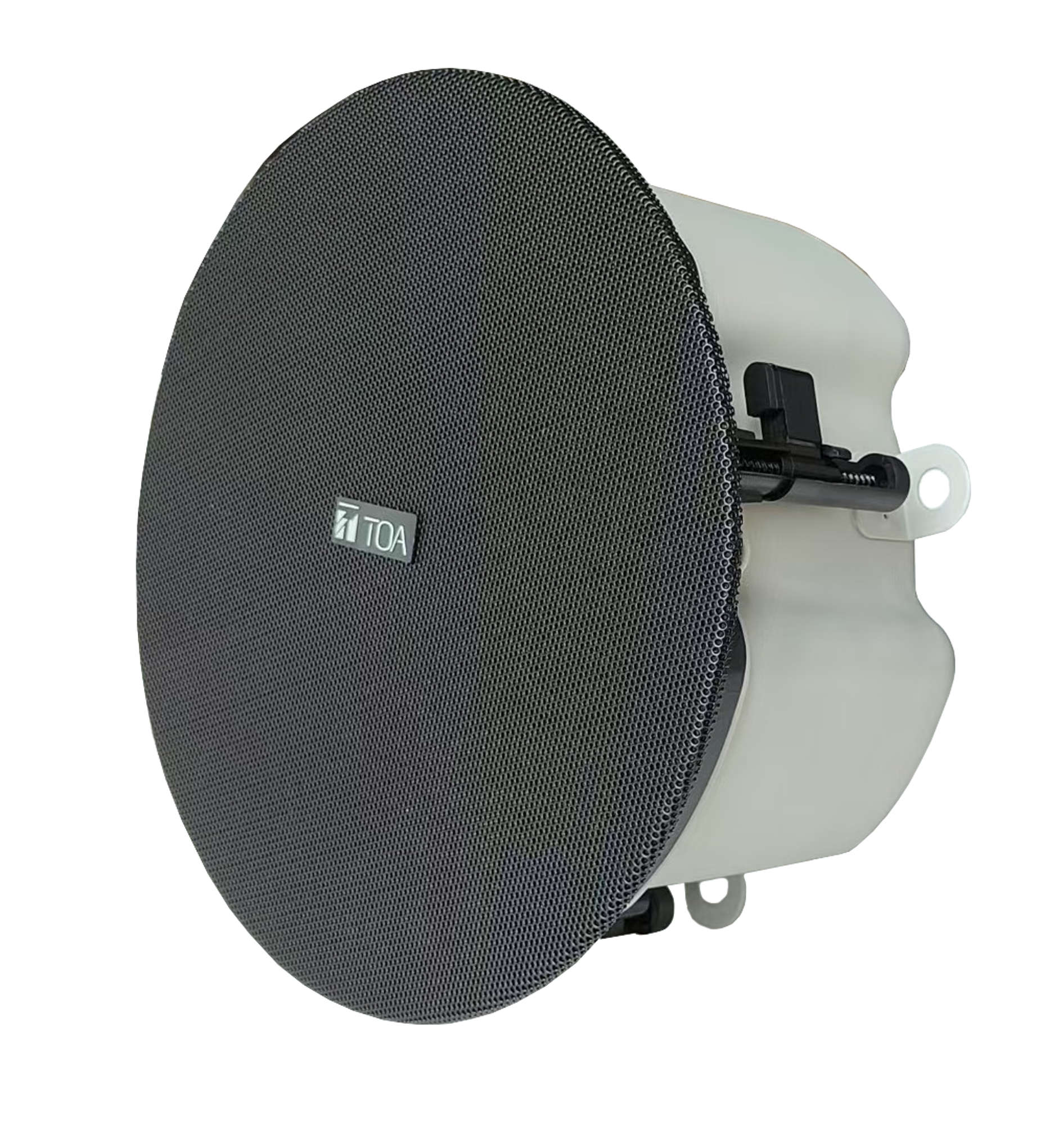

The F-2762LU2-AM is a - Low Profile flush-mounted ceiling speaker system that offers a wide frequency range of high-quality sound output. It is specifically designed to be mounted to a drop ceiling with use of the supplied tile bridge.
- Sold in pairs

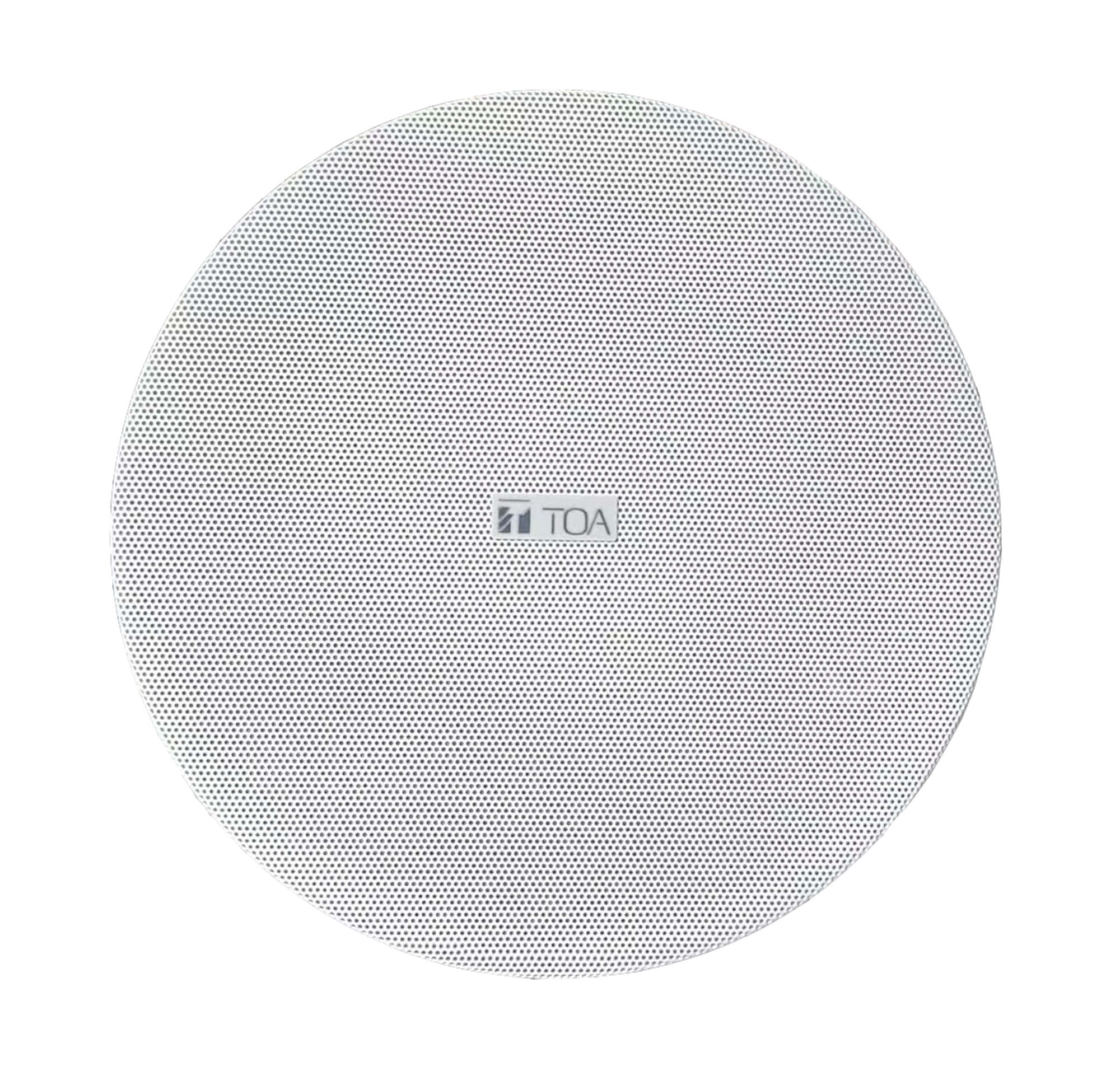

- Comes with black and white magnetic grilles
Rated Input
30 W (High Impedance)
Power Handling
Continuous Program: 60 W (8 Ω)
Impedance
100 V line: 163 Ω (30 W), 327 Ω (15 W), 653 Ω (7.5 W)
70 V line: 163 Ω (30 W), 327 Ω (15 W), 653 Ω (7.5 W), 1277 Ω (3.75 W)
8 Ω
70 V line: 163 Ω (30 W), 327 Ω (15 W), 653 Ω (7.5 W), 1277 Ω (3.75 W)
8 Ω
Sensitivity
89 dB (1 W, 1 m)
Frequency Response
70 Hz to 20 kHz (-10 dB)
Crossover Frequency
2.5 kHz
Coverage Angle
95° conical (nominal)
Speaker Component
Woofer: 165 mm (6.5") treated paper with ring mode decoupled cloth surround and steel basket
Tweeter: 25 mm (0.98") treated cloth dome, horn-loaded
Tweeter: 25 mm (0.98") treated cloth dome, horn-loaded
Mounting Hole
ø250 mm (9.85"), Maximum ceiling thickness: 55 mm (2.17")
Impedance Change
Recessed 5-position screwdriver adjustable rotary switch on baffle; Used to select 70 V/100 V tap settings or 8 Ω (bypass)
Input Terminal
Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Cable Requirements
Solid copper wire: Ø1.0 x Ø2.0 mm (Equivalent to AWG 18 x 12)
Stranded copper wire: 0.8 x 3.3 mm² (Equivalent to AWG 18 x 12)
Stranded copper wire: 0.8 x 3.3 mm² (Equivalent to AWG 18 x 12)
Compliance/Certifications
UL1480 (UUMW), UL1480 (UEAY), UL2043, CAN/CSA C22.2 No. 205-12 (UEAY7)
Operating Temperature
-20 °C to +50 °C (-4 °F to 122 °F)
Operating Humidity
Under 90 % RH (no condensation)
Finish
Enclosure: Zinc-plated steel, plenum-rated, side-entry cable clamp
Baffle: ABS UL94V-0 plastic
Grille: Steel with textured finish, paintable
Baffle: ABS UL94V-0 plastic
Grille: Steel with textured finish, paintable
Dimensions
Ø270 x 135 (D) mm (10.63" x 5.32")
Weight
4.1 kg (9.0 lbs)
Included Accessories
Grille (White) x 2, Grille (Black) x 2, Template x 2, Tile bridge x 4, Support ring x 2, Mounting screws 4x8 x 8, Mounting screws 3x8 x 2, Rubber cover x 2, Removable terminal plug (4 pins) x 2, Safety wire HF2-LG-2M-1B x 1
