Q-RM9012
Remote Microphone
Q-RM9012
Q-RM9012 is a remote microphone used in conjunction with 9000M2 Series Mixer Amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal in order to initiate / terminate the paging. This unit requires DC 24V power supply. AD-246 Power Supply required.
- Announcement to the selected zones out of a
maximum of 12 zones - Paging zones may be selected individually or
in groups - An All-Call button for selecting all zones
- A clear button for clearing all zone selections
- Unidirectional electret condenser microphone
with balanced audio output
Type
Gooseneck
Element
Unidirectional electret condenser microphone
Power Source
24 V DC from AC adaptor AD-246 or the equivalent
Frequency Response
100-20,000Hz

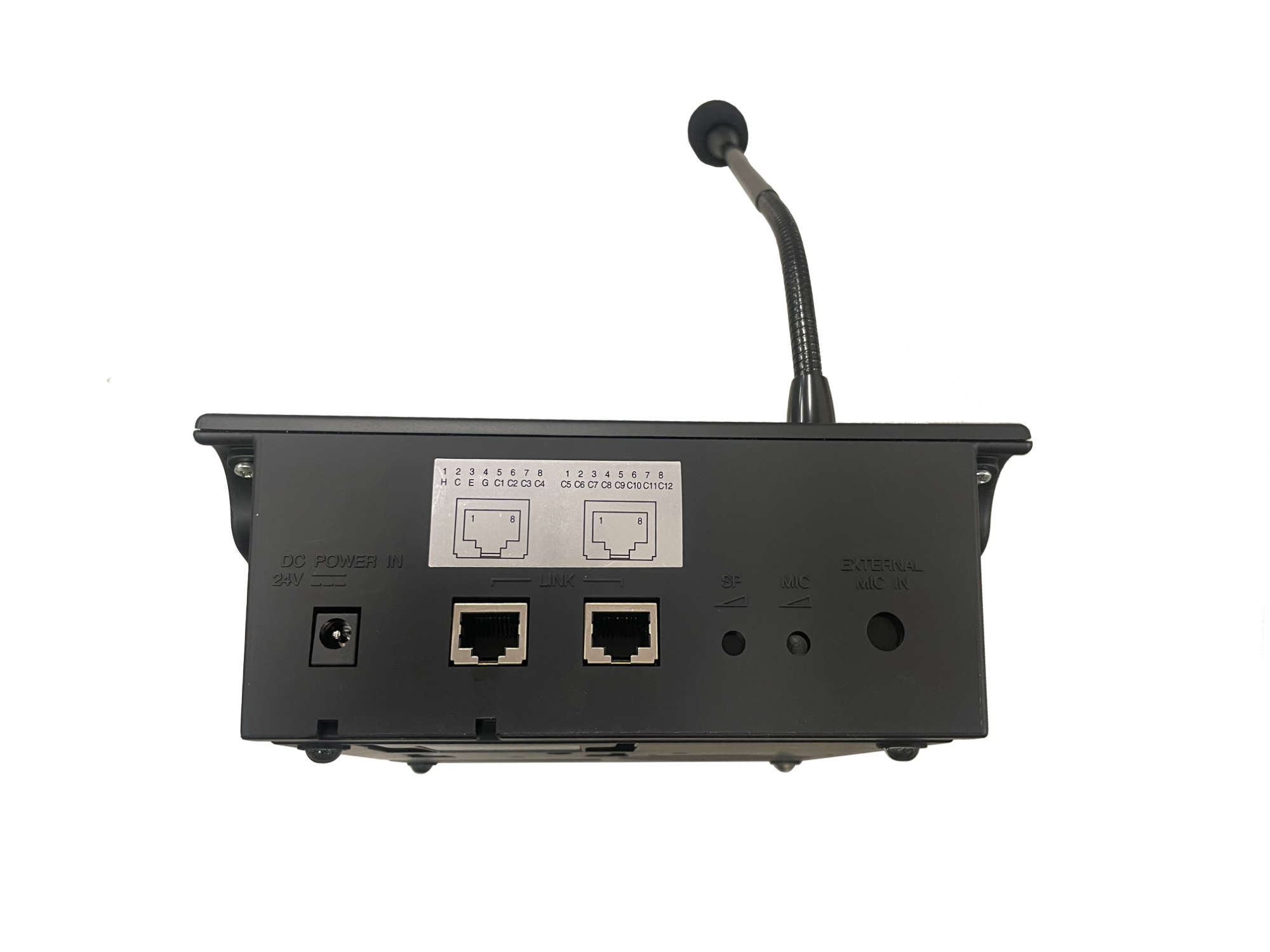

Output Terminal
0 dB*, 600Ω transformer balanced, RJ45 connector
Output
12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors
Talk Switch
12 zone selection keys, all call key, cancel key, talk key
Operating Temperature
-10°C to +40°C (14°F to 104°F)
Finish
ABS resin, black
Dimensions
190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded)
Weight
750g (1.65 lbs)
Optional Accessories
AC- Adaptor: AD-246
Please download Datasheet to access full specifications.
Required Accessory
